Electrosurgical unit Aluminum One Button Footswitch

Short Description:

Item Name Electrosurgical unitAluminum One Button Footswitch Pedal Material Cast aluminum alloy base + ABS pedal Cable specifications 24AWG, 80℃,300V, 4C X 0.2 mm², CE Certificated Cable ...
  • FOB Price: US $100-150 / Piece
  • Min.Order Quantity: 10 set
  • Supply Ability: 600 sets per Month
  • Product Detail

    Product Tags

    Item Name Electrosurgical unitAluminum One Button Footswitch
    Pedal Material Cast aluminum alloy base + ABS pedal
    Cable specifications 24AWG, 80℃,300V, 4C X 0.2 mm², CE Certificated
    Cable length 3 meters with gray color
    Connector 3pcs/4pins pins copper core or Ahanvos connector
    Switching voltage Max 25VAC / 60VDC, Max 250 Vac
    Current on switched Max 0.5A / Max 5A/Max 10A
    Switching power Max 30VA / Max 1250 VA
    Environment temperature -30 -80℃
    Standards IEC 6060-1-1; UL 6060-1-1; 93/42/EEC:
    LOGO Customized or Neutral or Ahanvos
    Waterproof standard IPX5 per IEC 60529, up to IPX8 as option
    Applicable Model Valleylab Force FX-8C/EX or Martin or Erbe

    Feature

    High mechanical stability

    Non-contact switching systems

    Protective bracket and a skid-proof design and fire-proof and explosion proof

    Elasticity of the plug-in connector, various plug optional

    Different RAL colors

    Degree of protection:IP6K7

    Comfortable design and light weight.

    Single pedal control coagulation

    Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.

    Cast aluminum alloy base + ABS pedal

    Length of cable : 3m or customized

    OEM service available.

    Standards IEC 6060-1-1; UL 6060-1-1; 93/42/EEC

    Pedal:shock-proof thermoplastic,UL 94-V0/-V2

    Protection Class:IPX5 per IEC 60529, up to IPX8 as option

    Mechanical life:1 million operations

    Base material:Cast aluminum alloy, ADC 12

    Termination:3 M cable, other lengths optionally available

    Switching voltage: Max 25VAC/60VDC, Max 250 Vac

    Current on switched:Max 0.5A/Max 5A

    Switching power: Max 30VA/Max 1250 VA

    Environment temperature: -30 -80℃

    Product Usage Introduction

    The method of using the foot switch is very simple. The foot switch is actually a built-in travel switch. When the foot pedal gives a signal, the switch executes. That is, the switch that operates the circuit by stepping or stepping on and off is used in the control circuit that cannot be reached by the hands to replace or free the hands to achieve the purpose of operation. Foot switches are widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.

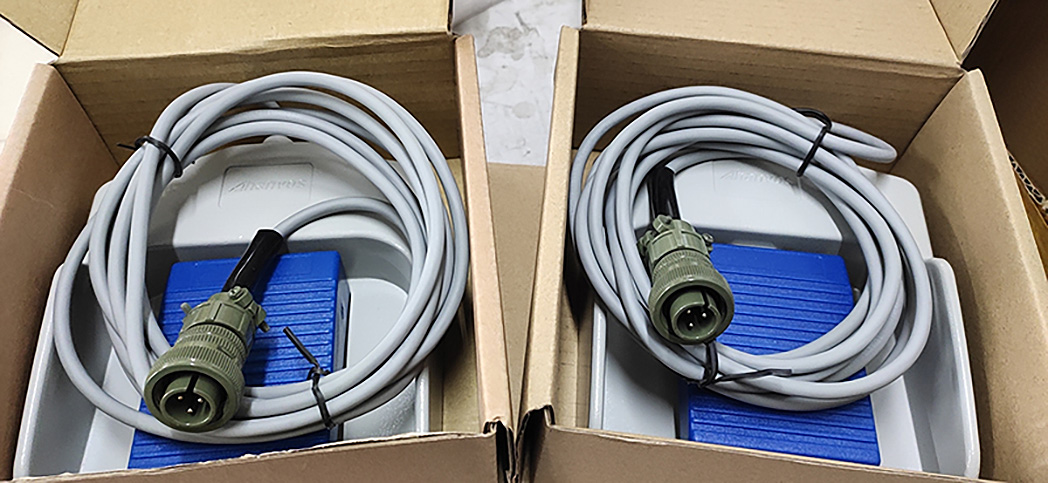

    photobank-(2)
