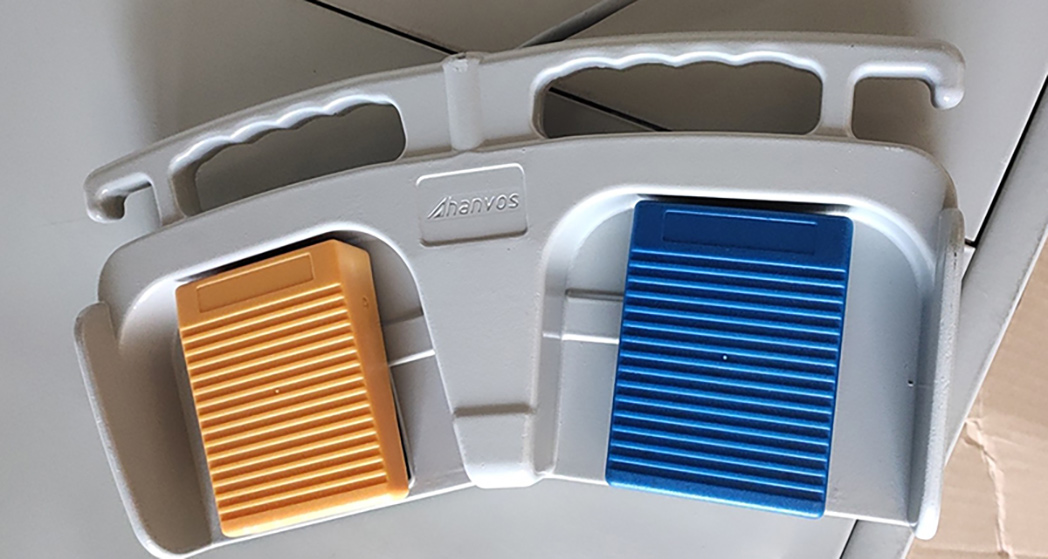

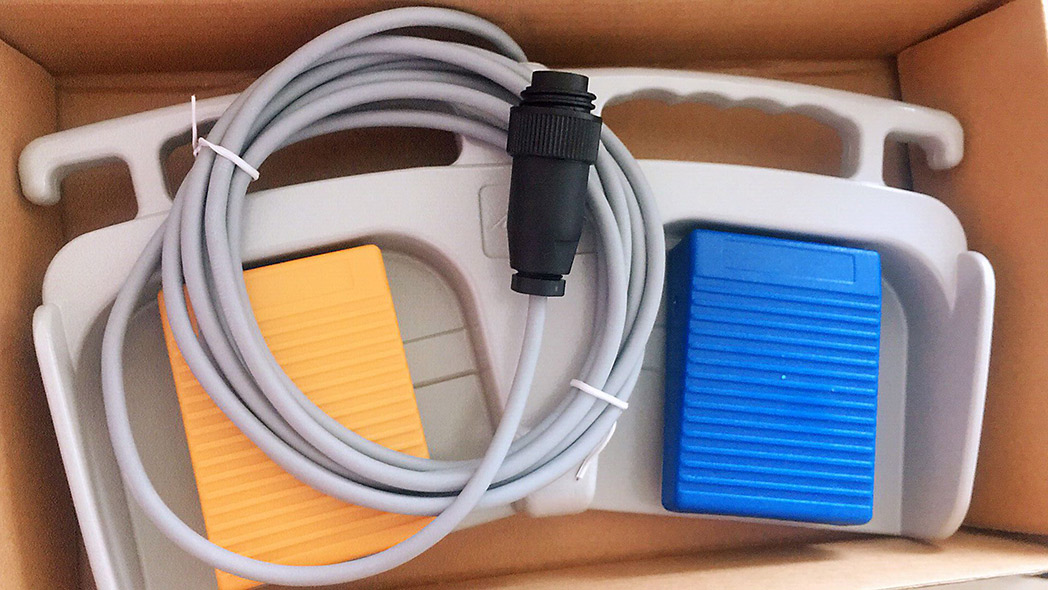

Electrosurgical unit Aluminum Two Button Footswitch
| Item Name | For Valleylab or Erbe Martin or Ahanvos electrosurgical unit |
| Pedal Material | Cast aluminum alloy base + ABS pedal |
| Cable specifications | 24AWG, 80℃，300V, 4C X 0.2 mm², CE Certificated |
| Cable length | 3 meters with gray color |
| Switching voltage | Max 25VAC / 60VDC, Max 250 Vac |
| Current on switched | Max 0.5A / Max 5A/Max 10A |
| Switching power | Max 30VA / Max 1250 VA |
| Environment temperature | -30 -80℃ |
| Standards | IEC 6060-1-1; UL 6060-1-1; 93/42/EEC: |
| LOGO | Customized or Neutral |
| Waterproof standard | IPX5 per IEC 60529, up to IPX8 as option |
Feature
High mechanical stability
Non-contact switching systems
Protective bracket and a skid-proof design and fire-proof and explosion proof
Elasticity of the plug-in connector, various plug optional
Different RAL colors
Degree of protection:IP6K7
Comfortable design and light weight.
Double pedal control coagulation
Compatible with ERBE/Vallylab/Martin and other brand electrosurgery unit.
Cast aluminum alloy base + ABS pedal
Customized Brand is available.
Standards IEC 6060-1-1; UL 6060-1-1; 93/42/EEC
Pedal:shock-proof thermoplastic,UL 94-V0/-V2
Protection Class:IPX5 per IEC 60529, up to IPX8 as option
Mechanical life:1 million operations
Base material:Cast aluminum alloy, ADC 12
Termination:3 M cable, other lengths optionally available
Switching voltage: Max 25VAC/60VDC, Max 250 Vac
Current on switched:Max 0.5A/Max 5A
Switching power: Max 30VA/Max 1250 VA
Environment temperature: -30 -80℃
