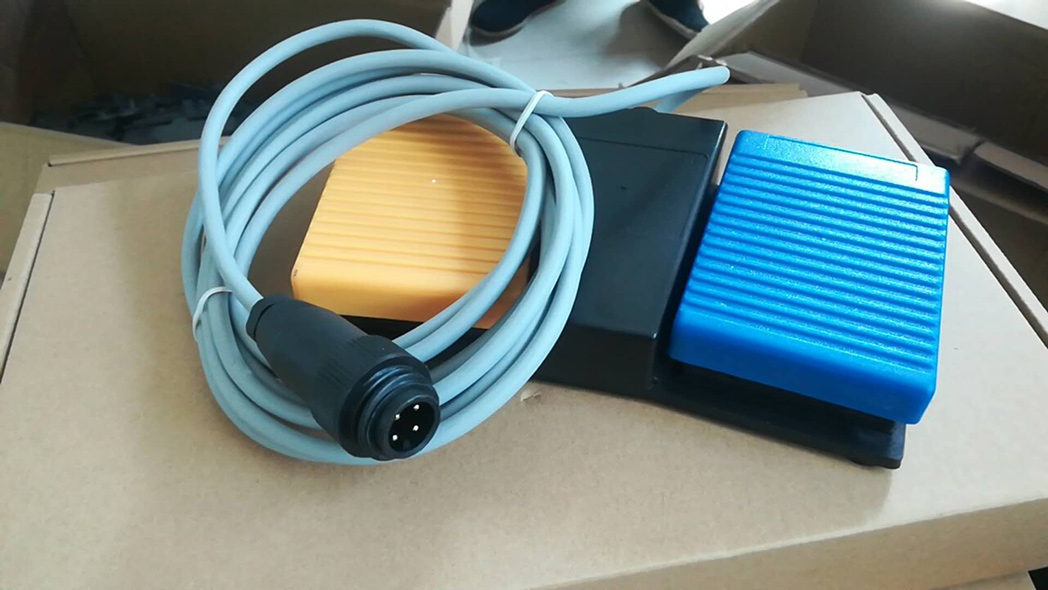

Electrosurgical unit Plastic Two Button Footswitch

Short Description:

Item Name Electrosurgical unit Plastic Two Button Footswitch Pedal Material Plastic Cable specifications 24AWG, 80℃,300V, 4C X 0.2 mm², CE Certificated Cable length 3 meters with g...
  • FOB Price: US $780- 7500 / Piece
  • Min.Order Quantity: 1 set
  • Supply Ability: 600 sets per Month
  • Product Detail

    Product Tags

    Item Name

    Electrosurgical unit Plastic Two Button Footswitch

    Pedal Material

    Plastic

    Cable specifications

    24AWG, 80℃,300V, 4C X 0.2 mm², CE Certificated

    Cable length

    3 meters with gray color

    Connector

    Ahanvos or other brand connector

    Switching voltage

    Max 25VAC / 60VDC, Max 250 Vac

    Current on switched

    Max 0.5A / Max 5A

    Switching power

    Max 30VA / Max 1250 VA

    Environment temperature

    -30 -80℃

    Standards

    IEC 6060-1-1; UL 6060-1-1; 93/42/EEC:

    MOQ

    One piece

    LOGO

    Customized or Neutral

    Waterproof standard

    IPX5 per IEC 60529, up to IPX8 as option

    Product Usage Introduction

    The method of using the foot switch is very simple. The foot switch is actually a built-in travel switch. When the foot pedal gives a signal, the switch executes. That is, the switch that operates the circuit by stepping or stepping on and off is used in the control circuit that cannot be reached by the hands to replace or free the hands to achieve the purpose of operation. Foot switches are widely used in medical equipment, stamping equipment, welding equipment, textile equipment, and printing machinery.

    Feature

    High mechanical stability

    Non-contact switching systems

    Protective bracket and a skid-proof design and fire-proof and explosion proof

    Elasticity of the plug-in connector, various plug optional

    Different RAL colors

    Degree of protection:IP6K7

    Standards IEC 6060-1-1; UL 6060-1-1; 93/42/EEC

    Pedal:shock-proof thermoplastic,UL 94-V0/-V2

    Protection Class:IPX5 per IEC 60529, up to IPX8 as option

    Mechanical life:1 million operations

    Base material:Cast aluminum alloy, ADC 12

    Termination:3 M cable, other lengths optionally available

    Switching voltage: Max 25VAC/60VDC, Max 250 Vac

    Current on switched:Max 0.5A/Max 5A

    Switching power: Max 30VA/Max 1250 VA

    Environment temperature: -30 -80℃

    3-(2)
